STE-P

    STE-P

    Technical specifications

    • Contacts: Double pole NONC contacts
    • Output: 4amp contact @ 30V AC/DC
    • Dual voltage 12/24 VDC @ 45mA operating
    • Moulded legend (various positions available)
    • Security screws (allen key type)
    • Silver contacts
    • Operating temperature -20° to + 60°c
    • Operating travel: 2mm
    • Contact resistance: 10m OHM (max)
    • Operating life (mechanical): 1,000,000

    Features:

    • Step to Exit Plate/Device
    • High impact plastic back box
    • Moulded rubber surface, hard wearing
    • Can be fitted to wall or floor (kick plate or foot plate)
    • Distance between fixing holes: 60mm

    STE-P

    Technical specifications

    • Contacts: Double pole NONC contacts
    • Output: 4amp contact @ 30V AC/DC
    • Dual voltage 12/24 VDC @ 45mA operating
    • Moulded legend (various positions available)
    • Security screws (allen key type)
    • Silver contacts
    • Operating temperature -20° to + 60°c
    • Operating travel: 2mm
    • Contact resistance: 10m OHM (max)
    • Operating life (mechanical): 1,000,000

    Features:

    • Step to Exit Plate/Device
    • High impact plastic back box
    • Moulded rubber surface, hard wearing
    • Can be fitted to wall or floor (kick plate or foot plate)
    • Distance between fixing holes: 60mm
    Dimensions:
    Product Code STE-P
    Dimensions 120x90x35 (mm)

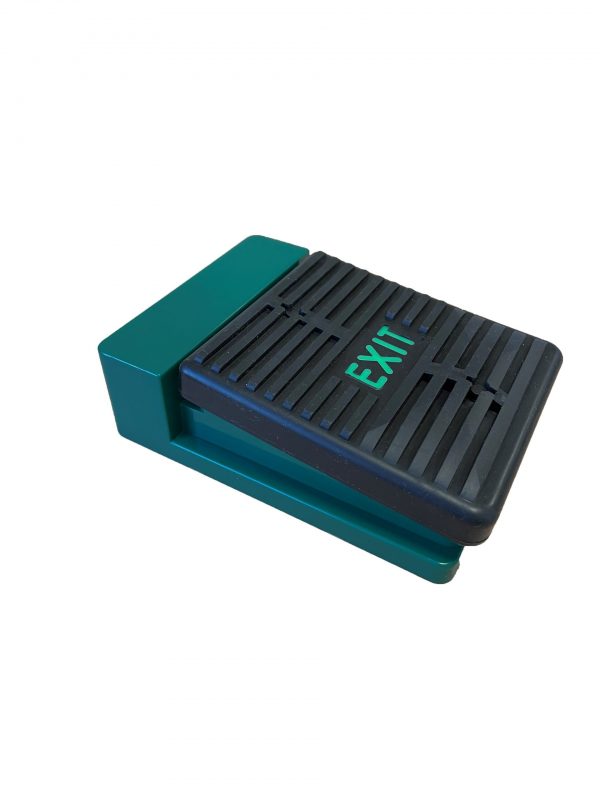

    Description Step to Exit Plate/Device
    Legend EXIT
    Weight 254g (Boxed) / 206g (Unboxed)
    Feature Sheet
    Instruction Sheet
    Diagrams
