ML600-MDS

    ML600

    Technical specifications

    • Aluminium housing.
    • Dual Voltage 12/24 VDC @480/240mA.
    • 280kgs (600lb) holding force.
    • Built in surge protection.
    • Surface Mount
    • Fail safe operation (Power to lock)
    • +/- 15% voltage tolerance
    • -10° to +50° operating temperature
    • Push off release pin on armature
    • Monitored (Lock monitoring)
    • Voltage free relay contacts
    • Door status monitoring

    Features:

    • Fire Rated (30, 60, 90 & 120 minute timber door sets)
    • Slim line mini magnet.
    • Clean and compact design in aluminium.
    • Status LED indication
    • No residual magnetism

    Suitable brackets:

    • BK600ZL (ZL Bracket)
    • BK600L (L Bracket)
    • AH600 (Armature Housing)
    • BK600U (U Bracket Glass Door)
    • GD600ZL (ZL Glass Door Bracket)
    • AB600ZL-DC (Architectural ZL Bracket)
    • BK600-F-L/AB (Architectural FL Bracket)
    • ADJ600-L (Fully adjustable L Bracket)

    ML600-MDS

    Technical specifications

    • Aluminium housing.
    • Dual Voltage 12/24 VDC @480/240mA.
    • 280kgs (600lb) holding force.
    • Built in surge protection.
    • Surface Mount
    • Fail safe operation (Power to lock)
    • +/- 15% voltage tolerance
    • -10° to +50° operating temperature
    • Push off release pin on armature
    • Monitored (Lock monitoring)
    • Voltage free relay contacts
    • Door status monitoring

    Features:

    • Fire Rated (30, 60, 90 & 120 minute timber door sets)
    • Slim line mini magnet.
    • Clean and compact design in aluminium.
    • Status LED indication
    • No residual magnetism

    Suitable brackets:

    • BK600ZL (ZL Bracket)
    • BK600L (L Bracket)
    • AH600 (Armature Housing)
    • BK600U (U Bracket Glass Door)
    • GD600ZL (ZL Glass Door Bracket)
    • AB600ZL-DC (Architectural ZL Bracket)
    • BK600-F-L/AB (Architectural FL Bracket)
    • ADJ600-L (Fully adjustable L Bracket)

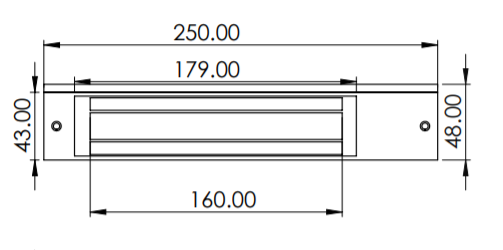

    Dimensions: 250x43x25 (mm)
    Product Code ML600-MDS
    Dimensions 250x43x25 (mm)
    Description Monitored Door Status Slimline Magnetic Lock 600lb / 280kg
    Description FIRE TESTED
    Weight 1.97Kg (Boxed) / 1.13Kg (Unboxed)
    Feature Sheet
    Instruction Sheet
    Diagrams
