ML600-D-M

    ML600-D-M
    Fire Logo

    Technical specifications

    • Aluminium housing.
    • 12/24Vdc @480/240mA x2
    • 280kgs (600lb) holding force x2
    • Built in surge protection.
    • ML600-D-M = Monitored

    Features:

    • Fire Tested (30 & 60 minute timber door sets)
    • Slimline mini magnet
    • Clean and compact design in aluminium.
    • Multi LED indication and monitoring on ML600-D-M
    • No residual magnetism.

    Brackets:

    • BK600-D-ZL (Double ZL Bracket)
    • BK600-D-L (Double L Bracket)
    • AH600 (Armature Housing) x2
    • BK600U (U Bracket Glass Door) x2
    • GD600ZL (ZL Glass Door Bracket) x2
    • AB600ZL-DC (Architectural ZL Bracket) x2
    • BK600-F-L/AB (Architectural FL Bracket) x2

    ML600-D-M

    Technical specifications

    • Aluminium housing.
    • 12/24Vdc @480/240mA x2
    • 280kgs (600lb) holding force x2
    • Built in surge protection.
    • ML600-D-M = Monitored

    Features:

    • Fire Tested (30 & 60 minute timber door sets)
    • Slimline mini magnet
    • Clean and compact design in aluminium.
    • Multi LED indication and monitoring on ML600-D-M
    • No residual magnetism.

    Brackets:

    • BK600-D-ZL (Double ZL Bracket)
    • BK600-D-L (Double L Bracket)
    • AH600 (Armature Housing) x2
    • BK600U (U Bracket Glass Door) x2
    • GD600ZL (ZL Glass Door Bracket) x2
    • AB600ZL-DC (Architectural ZL Bracket) x2
    • BK600-F-L/AB (Architectural FL Bracket) x2
    Dimensions: 180x35x10 (mm)
    Product Code ML600-D-M
    Dimensions 500x42x25 (mm)

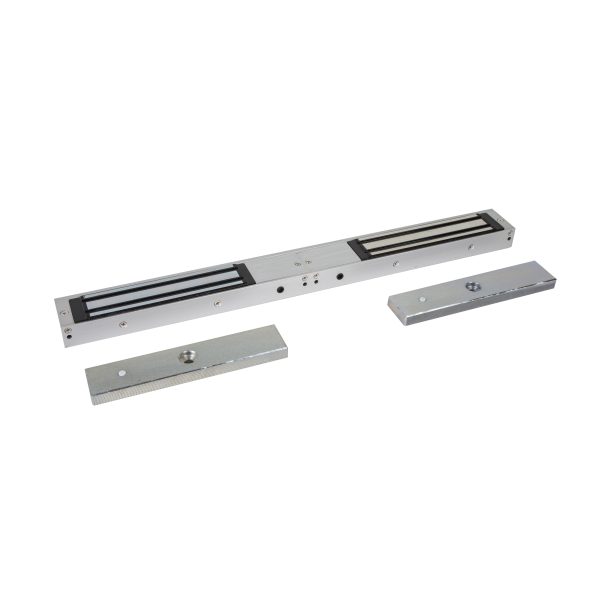

    Description Double Monitored Maglock (600lb / 280kg)
    Description FIRE TESTED
    Weight 3.94Kg (Boxed) / 2.26Kg (Unboxed)
    Feature Sheet
    ML600-D - Data Sheet441.98 KB
    Instruction Sheet
    Diagrams
