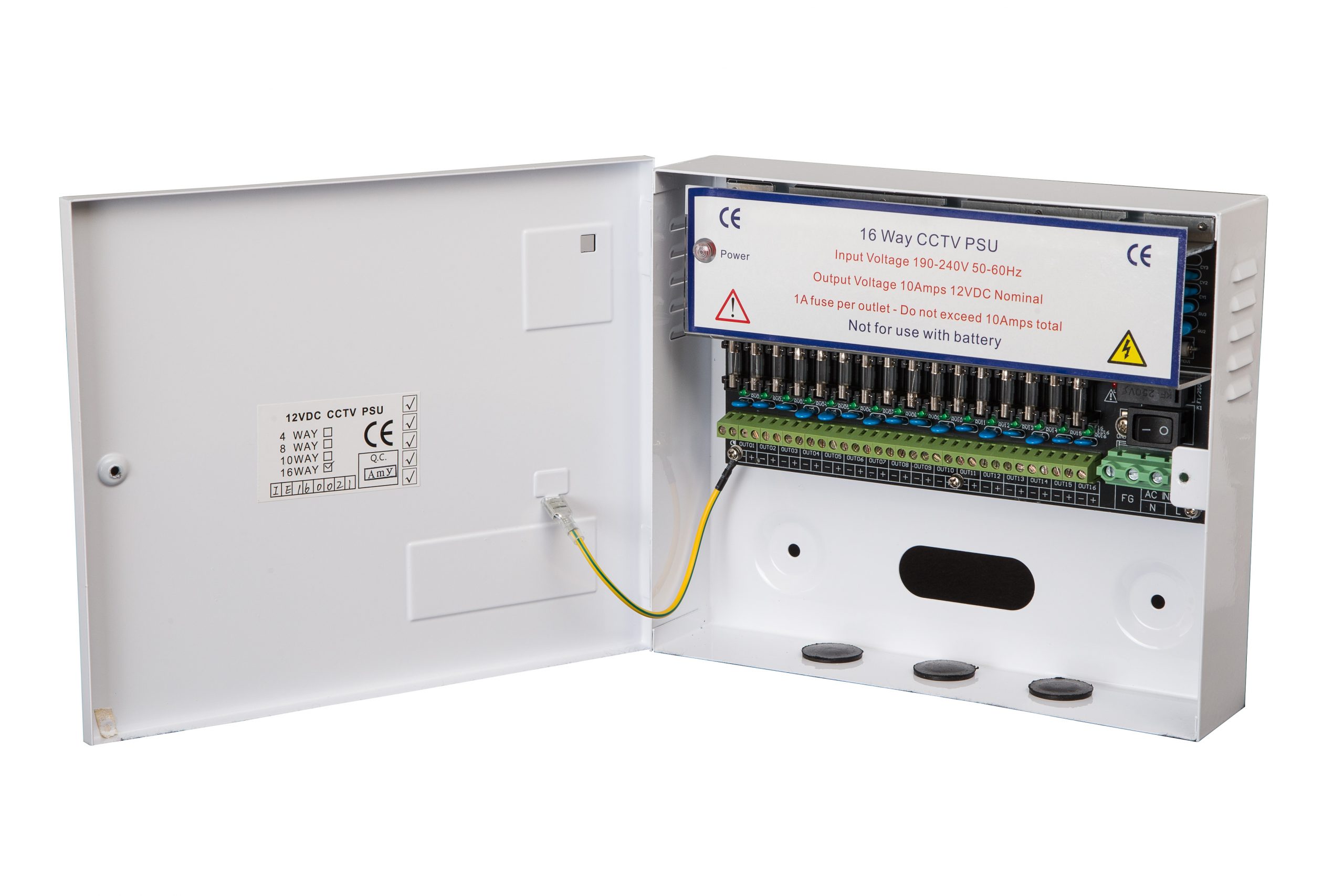

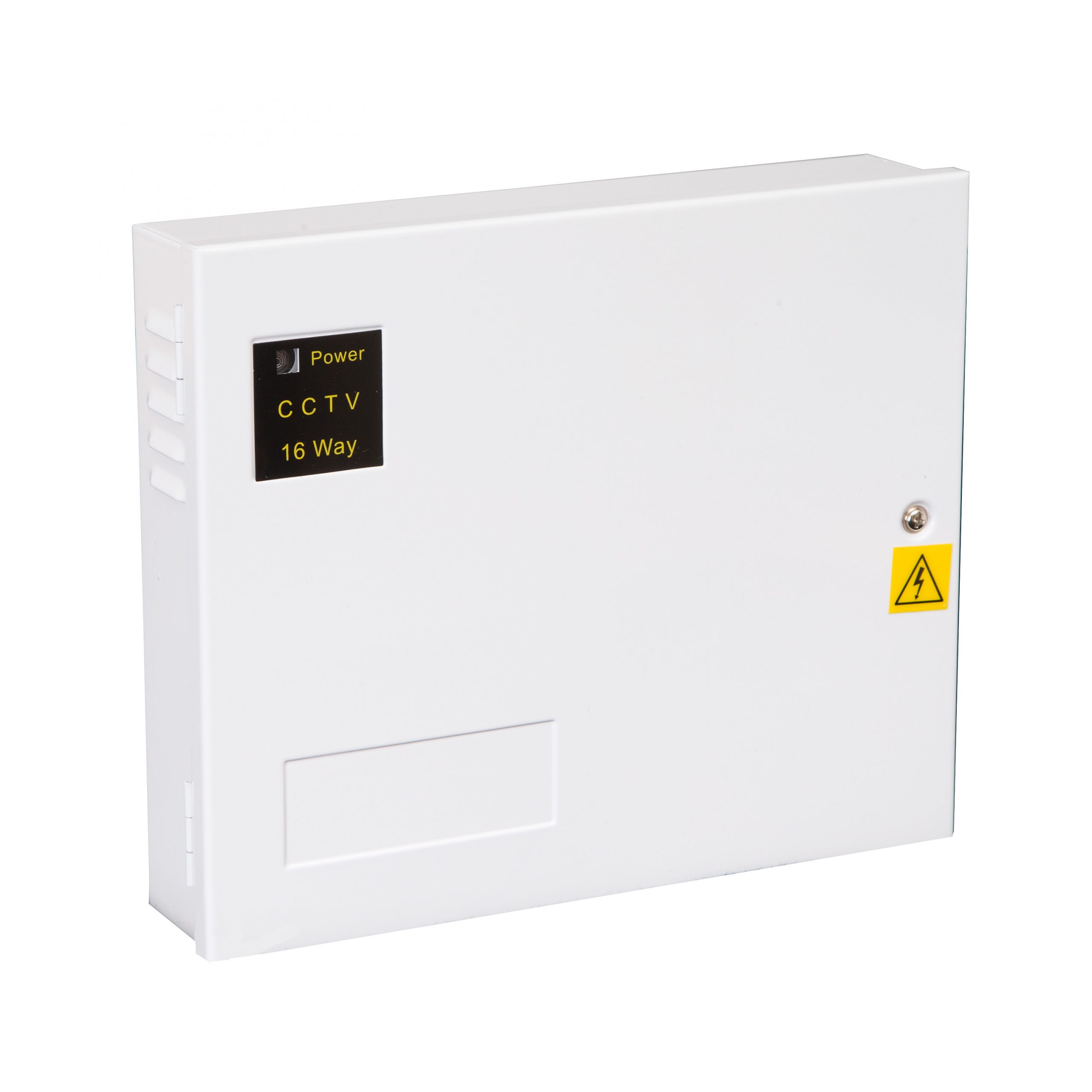

CP12-16

    CP12-16

    Technical specifications

    • Full current load.
    • 12VDC regulated output.
    • Fuse status Indicated.
    • Current limiting fuses.
    • LED Indicators (mains on)
    • Mains transient protection.

    Features:

    • 4 replaceable fuses 3 AMP (CP12-4)
    • 5 replaceable fuses 5 AMP (CP12-5)
    • 8 replaceable fuses 5 AMP (CP12-8)
    • 10 replaceable fuses 10 AMP (CP12-10)
    • 16 replaceable fuses 10 AMP (CP12-16)
    • Wiring Instruction with product
    • More efficient & environmentally friendly.
    • Switchmode technology.

    CP12-16

    Technical specifications

    • Full current load.
    • 12VDC regulated output.
    • Fuse status Indicated.
    • Current limiting fuses.
    • LED Indicators (mains on)
    • Mains transient protection.

    Features:

    • 4 replaceable fuses 3 AMP (CP12-4)
    • 5 replaceable fuses 5 AMP (CP12-5)
    • 8 replaceable fuses 5 AMP (CP12-8)
    • 10 replaceable fuses 10 AMP (CP12-10)
    • 16 replaceable fuses 10 AMP (CP12-16)
    • Wiring Instruction with product
    • More efficient & environmentally friendly.
    • Switchmode technology.
    Dimensions:
    Product Code CP12-16
    Dimensions 240x200x55 (mm)
    Description 10Amp CCTV PSU (16 fuses)
    Weight 1.62kg (Boxed) / 1.50kg (Unboxed)
