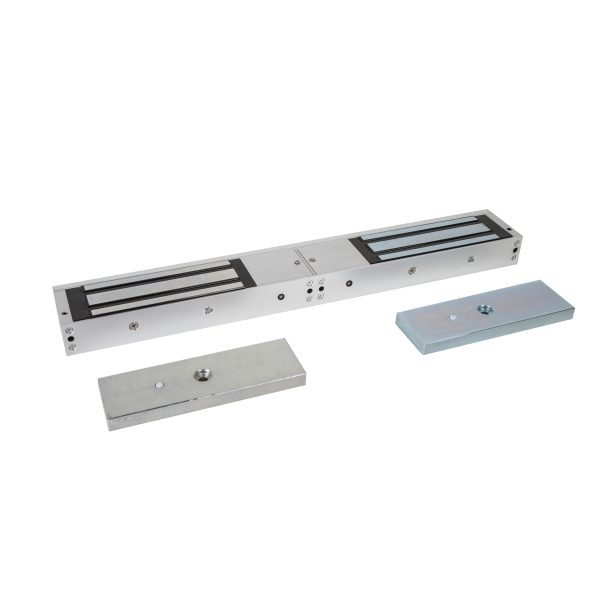

ML1200-D-M

    ML1200-D-M
    ML1200-D-M

    Technical specifications

    Technical specifications

    • Aluminium housing.
    • 12/24Vdc @600/300mA x2
    • 545kgs (1200lb) holding force x2
    • Built in surge protection.
    • ML1200-D-M = Monitored

    Features:

    • Standard magnet
    • Clean and compact design in aluminium.
    • Multi LED indication and monitoring on ML1200-D-M
    • No residual magnetism.

    Brackets:

    • BK1200-D-ZL (Double ZL Bracket)
    • BK1200-D-L (Double L Bracket)
    • AH1200 (Armature Housing) x 2

    ML1200-D-M

    Technical specifications

    Technical specifications

    • Aluminium housing.
    • 12/24Vdc @600/300mA x2
    • 545kgs (1200lb) holding force x2
    • Built in surge protection.
    • ML1200-D-M = Monitored

    Features:

    • Standard magnet
    • Clean and compact design in aluminium.
    • Multi LED indication and monitoring on ML1200-D-M
    • No residual magnetism.

    Brackets:

    • BK1200-D-ZL (Double ZL Bracket)
    • BK1200-D-L (Double L Bracket)
    • AH1200 (Armature Housing) x 2
    Dimensions: 530x73x40 (mm)
    Product Code ML1200-D-M
    Dimensions 530x73x40 (mm)
    Description Double Magnetic Lock 1200lb / 545kg x 2
    Weight 8.54Kg (Boxed) / 5.58Kg (Unboxed)
    Feature Sheet
    ML1200-D-M Data Sheet471.04 KB
